Embroidery Machine

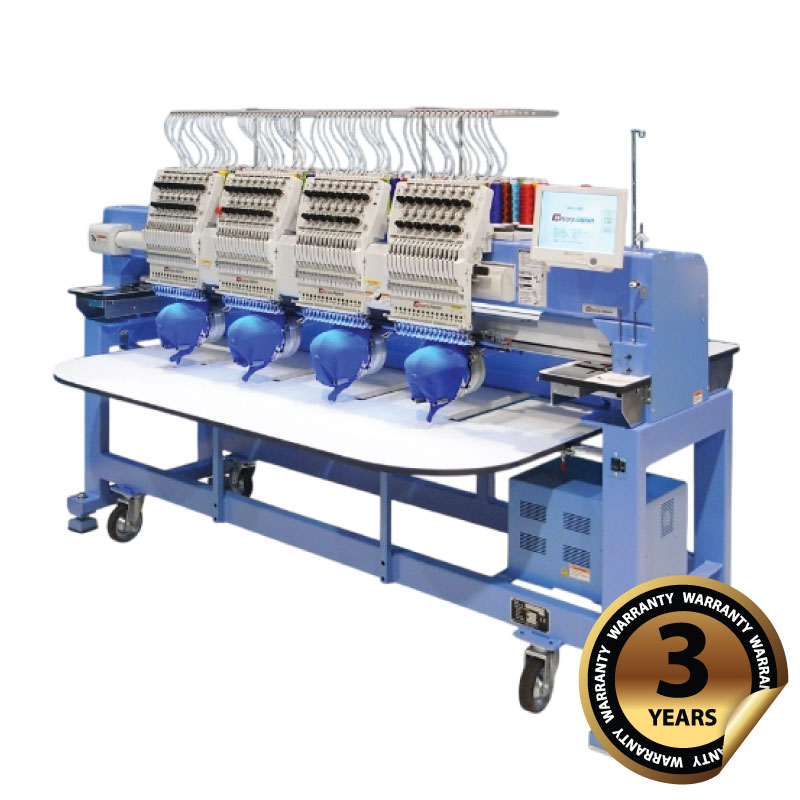

Happy Japan HCR3E Series Multi Head Embroidery Machine
Economy type model of HCR3 series
An economy model of HCR3, named HCR3E, is available with its range of 2 heads up to 8 heads embroidery machine.
X series for wider embroidery area (Width:500mm) is available for 4 and 6 heads.
Same machine body and carriages design as HCR3 , so ensure to eliminate noise and vibration, producing high quality embroidery.
With all the time Happy’s user-friendly control panel and all HCR3 options addable, this model is absolutely an alternative choice.
All HappyJapan embroidery machines are made in Japan.
Key Features
Bobbin Winder
Option for HCR series
10.4 inch Display Monitor
Optional larger monitor
Upper Thread Holder
No more trouble with upper thread escaping from needles
Laser Position Marker
No more hitting frames
Safety Sensor Front & Rear
For avoidance to get injuries by accidentally touching working machines
Border Frame
For embroidery work on original fabrics
Cap Frame
For embroidery work on caps
One Point Frame (long type)
For one point embroidery work on shirts, bags, pants’ or shirts’ pockets etc.
Sequin & Zigzag Cording
For additional decorations on embroideries
Borer Device
Hollowing out garments for lace embroidery etc.
Spider Frame
Option for HCR series
Round Frame Preparation Base
Preparation base to reduce clumsiness for round frames
Specification
| Number of Needles | 15 |
| Number of Head | 2-8 |
| Maximum Speed Tubular | 1,000-1100rpm |
| Maximum Speed Cap | 850 |
| Maximum Embroidery (x-y) | 450 x 360 or 450 x 500mm |
| Stitch Lenght | 0.1 – 12.7 mm |
| Memory | 40milion stitches / 999 designs |
| Power Supply | Single Phase 200-240V |
General Features
| Automatic Thread Trimer | Yes |
| Automatic Thread Break Detection | Yes |
| Built-in Bobbin Thread Winder | Option |
|---|---|
| LCD Touch Screen Control Panel | 7 inch / Option: 10.4 inch |
| Laser Position Marker | Option |
| Direct PC Connection | USB/LAN |
| PC Communication Software | Yes |
| 12 Fonts 6 Sizes Lettering | Yes |
| Built-in 100 One-point Designs | Yes |
| Embroidery Pattern Loading | USB Pen Drive |
